FAQ

Each assignment will have an FAQ linked at the top. You can also access it by adding “/faq” to the end of the URL. The FAQ for Lab 2 is located here. The FAQ (frequently asked questions) is a list of compiled questions and errors that students often run into, so refer to this page first before reaching out to staff.

Learning Goals

In this lab, we will learn more about Java syntax and get some more practice with programming in Java.

To see what you need to complete for full credit on this lab, skip to the Deliverables section below.

Java: Conditionals, Loops, and Arrays

This section will provide an introduction to Java loops and conditionals (the if, while and for statements), followed by a brief explanation of Java Arrays. We assume no prior experience with any of these topics in Java, but we do assume some prior knowledge of these concepts from an earlier course (like Python control flow and lists as taught in CS61A).

Because of this, there is a lot of information presented here, but hopefully most of it will be review that can be skimmed through quickly.

This course strives to teach you how to “program”, and this includes not just teaching you how to write code, but how to do a variety of activities. We have included a few exercises for you to practice writing, analyzing, and testing code.

How if and if ... else Work

An if statement starts with the word if. It is followed by a condition statement in parentheses that is either true or false (a boolean expression). There is then a sequence of statements surrounded by braces, which is called the body. For example:

if (year % 4 == 0) {
    System.out.println (year + " might be a leap year.");
}

Note: like in Python, the % symbol above is called mod, and it takes the remainder after division. The above statement is checking if year has no remainder when divided by 4). The behavior of the % operator in Java annoyingly differs slightly from how it functions in Python, particularly with respect to negative numbers.

For example in Python -5 % 4 evaluates to 3 whereas in Java -5 % 4 evaluates to -1. If you want the behavior to match what you might expect in Python, you should use the Math.floorMod function in Java. If you do this then Math.floorMod(-5, 4) evaluates to 3.

The braces after an if statement aren’t technically necessary if there is only one statement in the sequence; however, it is good practice to always include them since it makes it easier to add lines to the body later.

Unlike other languages (Python in particular), the condition of the if statement must be a boolean statement or a statement that reduces to a boolean expression. if (5): is a legal statement in Python, but if (5) { will not compile in Java.

Boolean expressions often involve comparisons. The comparison operators in Java are == and != for equality and inequality testing, and >, >=, <, and <= for comparison of magnitudes. Multiple comparisons can be chained together with the logical operators && (and) and || (or). If instead you wish to negate an expression, you can prefix your expression with !, the Java negation operator.

The block of statements following the if statement above will not execute if year’s value is not divisible by 4. If you wanted something to happen when the test fails, use the else keyword. Here’s an example:

if (year % 4 == 0) {
    System.out.println (year + " might be a leap year.");
} else {
    System.out.println (year + " is definitely not a leap year.");
}

You can also add further tests that are executed only if above boolean expressions evaluate to false, similarly to elif in Python. For example:

if (year % 4 != 0) {
    System.out.println (year + " is not a leap year.");
} else if (year % 100 != 0) {
    System.out.println (year + " is a leap year.");
} else if (year % 400 != 0) {
    System.out.println (year + " is not a leap year.");
} else {
    System.out.println (year + " is a leap year.");
}

Note that only one body section, the one corresponding to the first true boolean expression (or else if none are true), will execute. After that, your program will continue on, skipping all the remaining code in this if structure. This implies that none of the conditions below the first true boolean expression will be evaluated.

One consequence of conditions becomes apparent in non-void methods. Recall that in Java, you must return something of the return type. Consider the following code snippet:

public int relu(int x) {
    if (x < 0) {
        return 0;
    }
}

As the code is, it will not compile. That is because currently, a value is only returned when x is less than 0. What happens when that’s not the case? Java must be assured that relu() always returns an int, and thus will not allow you to compile your code.

A correct version looks like this:

public int relu(int x) {
    if (x < 0) {
        return 0;
    } else {
        return x;
    }
}

How while Works

The while statement is used to repeat a sequence of statements. It consists of the word while, followed by a continuation test in parentheses, also called the condition. It is then followed by a sequence of statements to repeat enclosed in braces, called the loop body.

The while statement works by evaluating the condition. If the condition is true (the test succeeds), the entire loop body is executed, and the condition is checked again. If it succeeds again, the entire loop body is executed again. This continues, possibly infinitely.

A common mistake when first learning a Java-like language is to think that the behavior of while is to stop as soon as the test becomes false, possibly in the middle of the loop. This is not the case. The test is checked only at the end of a complete iteration, and so this is the only time the loop can stop.

Here’s an example that implements the remainder operation dividend % divisor, and produces some output. We assume all variables have already been declared, and that divisor and dividend have already been assigned positive values.

while (dividend >= divisor) {
    dividend = dividend - divisor;
    System.out.println ("loop is executed");
}
remainder = dividend;

All statements of the loop body are executed, even if one of them affects the truth value of the test. In the example above, values of 9 for dividend and 4 for divisor result in two lines of output. We show a representation with values of 13 for dividend and 4 for divisor and initially 0 for remainder. This results in 3 lines of output.

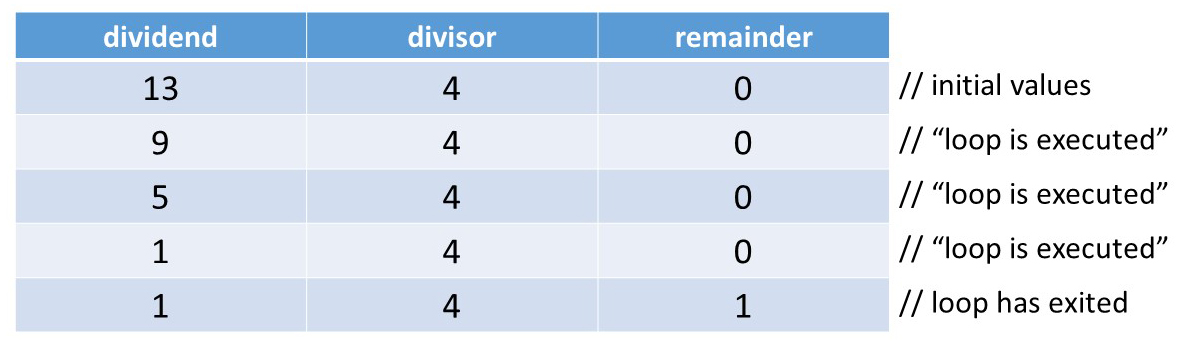

When debugging while loop code, sometimes it’s useful to make charts like the one below to keep track of the value of each variable.

DividendDivisor

How for Works

The for statement provides another way in Java to repeat a sequence of statements, similar to while but slightly different. It starts with for, continues with loop information inside parentheses, and ends with the loop body (the segment to be repeated) enclosed in curly braces.

for (loop-information) {
    loop-body;
}

Loop information consists of initializations, a test (condition), and increments. If the test succeeds, the loop continues and then increments. These refer to the creation of variables, boolean conditions that dictates when the loop should and should not be entered, and the equation we use to update our position between loops. These three sections are separated by semicolons, and any of these may be blank. If there is more than one initialization or increment, they are separated by commas.

for (initialization; test; increment) {
    loop-body;
}

Loop execution proceeds as follows:

  1. Initializations are performed.
  2. The test is evaluated.
    • If the condition is false, the loop is finished and execution continues with the code following the for loop.
    • If the condition is true, the loop body is executed, increments are performed, and we loop back to the top of step 2 where the test is evaluated again. (Note: We never re-initialize.)

Note that the code for (;;) is in fact valid Java code. It never terminates!

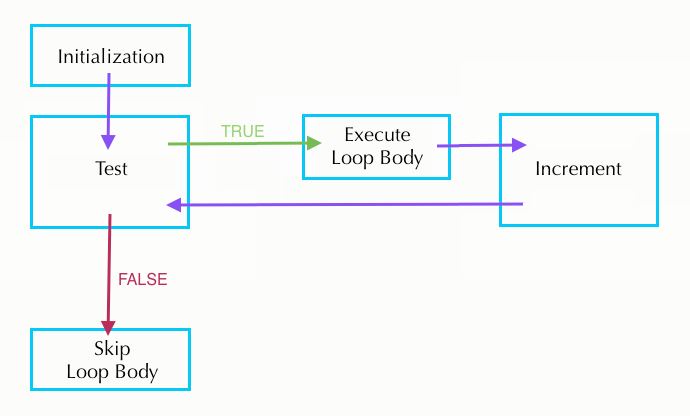

For Loop Execution

The following loops are several equivalent ways to compute n factorial (the product of all the positive integers up through n).

  • Two initializations in loop-information

    for (int k = n, product = 1; k > 0; k = k - 1) {
    product = product * k;
}

  • Product initialized outside for loop

    int product = 1;
for (int k = n; k > 0; k = k - 1) {
    product = product * k;
}

  • Decrement performed inside the loop-body

    int product = 1;
for (int k = n; k > 0; ) {
    product = product * k;
    k = k - 1;
}

  • While loop equivalent

    int product = 1;
int k = n;
while (k > 0) {
    product = product * k;
    k = k - 1;
}

As the last loop demonstrates, the for loop is basically a repackaged while loop that puts all the information about how long the loop should continue in one place. Thus, a for loop is generally easier to understand than an equivalent while loop.

Shortcuts for Incrementing / Decrementing

Let k be an integer variable. Then the three following statements all increment k by 1:

k = k + 1;
k += 1;
k++;

Similarly, these three statements all decrement k by 1.

k = k - 1;
k -= 1;
k--;

Note: The motivation for this shorthand notation is that the operations of incrementing and decrementing by 1 are very common. While it is legal to increment or decrement variables within larger expressions like

System.out.println(values[k++]);

this is a risky practice very susceptible to off-by-one errors. In general, we suggest starting with more verbose syntax. Therefore, we ask that you only use the ++ or -- operations on lines by themselves.

The break Statement

The break statement “breaks out of” a loop (both for and while loops). In other words, it stops the execution of the loop body, and continues with the statement immediately following the loop. An example of its use would be a program segment that searches an array named values for a given value, setting the variable found to true if the value is found and to false if it is not in the array.

boolean found = false;
for (int k = 0; k < values.length; k++) {
    if (values[k] == value) {
        found = true;
        break;
    }
}

This break statement allows us to save computation time. If we find the value within the array before the end, we don’t waste more time looping through the rest of the array.

However, the break statement is not always necessary, and code with a lot of breaks can be confusing. Abusing the break statement is often considered poor style. When using break, first consider if instead it would be more appropriate to put another condition in the test.

The continue Statement

The continue statement skips the current iteration of the loop body, increments the variables in the loop information, then evaluates the loop test. This example checks how many 0’s there are in array values:

int count = 0;
for (int i = 0; i < values.length; i++) {
    if (values[i] != 0) {
        continue;
    }
    count += 1;
}
System.out.println("Number of 0s in values array: " + count);

Similar to the break statement, the continue allows us to save time by skipping sections of the loop. In this case, the continue allows us to add to the count only when there is a 0 in the array. Removing continue will give an incorrect output.

The difference between break and continue is that break immediately stops the loop and moves on to the code directly following it. In comparison, continue stops going through the current iteration of the loop body and immediately continues on to the next iteration as given by the loop information.

Like with break, abusing continue is often considered poor style. Try not to go crazy with nested breaks and continues.

Both break and continue apply to only the closest loop it is enclosed in. For instance, in the case of the following nested loop, the break will only exit out of the inner for loop, not the outer one.

for (int i = 0; i < values.length; i++) {
    for (int j = i + 1; j < values.length; j++) {
        if (values[i] == value[j]) {
            break;
        }
    }
}

Array Definition and Use

An array is an indexed sequence of elements, all of the same type. Real-life examples of arrays include the following:

  • ducks in a row
  • slices of bread
  • words in this sentence
  • book pages
  • egg cartons
  • chessboards / checkerboards

We declare an array variable by giving the type of its elements, a pair of square brackets, and the variable name, for example:

int[] values;

Note that we don’t specify the length of the array in its declaration.

Arrays are basically objects with some special syntax. To initialize an array, we use the new operator as we do with objects; the argument to new is the type of the array, which includes the length. For example, the statement

values = new int[7];

stores a reference to a 7-element integer array in the variable values. This initializes the array variable itself. If we want to declare and initialize the array at the same time, we can:

int[] values = new int[7];

The elements of the array are indexed from 0 to (array length) - 1 and the element at a particular index can be changed with an assignment statement. For example, to set the second element to 4 we write:

values[1] = 4;

For an int array, Java will (by default) set all of the elements to 0. Similarly, double arrays will be filled with 0.0, boolean with false, etc. For arrays of references to non-primitive objects (whose precise definition we will cover in lab 4), the array will be initialized with null.

If you know what every value in your array should be at initialization time, you can use this simplified syntax to directly initialize the array to the desired values. Note that you don’t have to provide the array length because you’re explicitly telling Java how long your array should be.

int[] oneThroughFive = new int[]{1, 2, 3, 4, 5};
// This also works but only if you declare and initialize in the same line
int[] oneThroughFive = {1, 2, 3, 4, 5};

To access an array element, we first give the name of the array, and then supply an index expression for the element we want in square brackets. For example, if we want to access the kth element of values (0-indexed), we can write:

values[k]

If the value of the index expression is negative or greater than/equal to the length of the array, an exception is thrown (negative indexing is not allowed).

Every array has an instance variable named length that stores the number of elements that array can hold. For the values array just defined, values.length is 7. The length variable can’t be changed; once we create an array of a given length, we can’t shrink or expand that array.

for Statements with Arrays

for statements work well with arrays. Consider, for example, an array named values. It is very common to see code like the following:

for (int k = 0; k < values.length; k += 1) {
    // do something with values[k]
}

Multidimensional Arrays

Having an array of objects is very useful, but often you will want to have an array of arrays of objects. Java does this in a very natural way. We’ve already learned that to declare an array, we do:

int[] array;

Similarly, to declare an array of arrays, we do:

int[][] arrayOfArrays;

When constructing an array of arrays, you must declare how many arrays it contains (because this is the actual array you are constructing), but you don’t have to declare the length of each array. To declare an array of 10 arrays, you do this:

int[][] arrayOfArrays = new int[10][];

To construct the first array in the array of arrays, you could do:

arrayOfArrays[0] = new int[5];

And you could access the first index of the first array as:

arrayOfArrays[0][0] = 1;

Hopefully this all makes sense. Alternatively, you can fix the length of each array in the array of arrays as the same length like this:

int[][] tenByTenArray = new int[10][10];

You can also directly instantiate an array of arrays with prefilled elements, such as:


int[][] oneThroughTen = {{1, 2, 3}, {4, 5, 6}, {7, 8, 9}};

An array of arrays, when the different sub-arrays can be of different sizes, is called a jagged array. If they are all the same size, it is often convenient to forget altogether that you have an array of arrays, and instead to simply imagine you had a multi-dimensional array. For instance, you could create a 3-dimensional array (to represent points in space, for example) like this:

int[][][] threeDimensionalArray = new int[100][100][100];

This 3D array has 100x100x100 = 1,000,000 different values. Multidimensional arrays are extremely useful, and you’ll be encountering them a lot.

Task: A Jigsaw Puzzle - Drawing a Triangle

The file TriangleDrawer.stuff contains a collection of statements. Some of the statements, together with some extra right braces, form the body of a main method that, when executed, will print the triangle:

*
**
***
****
*****

(Each line has one more asterisk than its predecessor; the number of asterisks in the last line is the value of the SIZE variable. SIZE has a hard-coded value, which you should experiment with. Feel free to make SIZE controlled by a command-line argument! However, when you turn it in, make sure that it will run with SIZE = 5!)

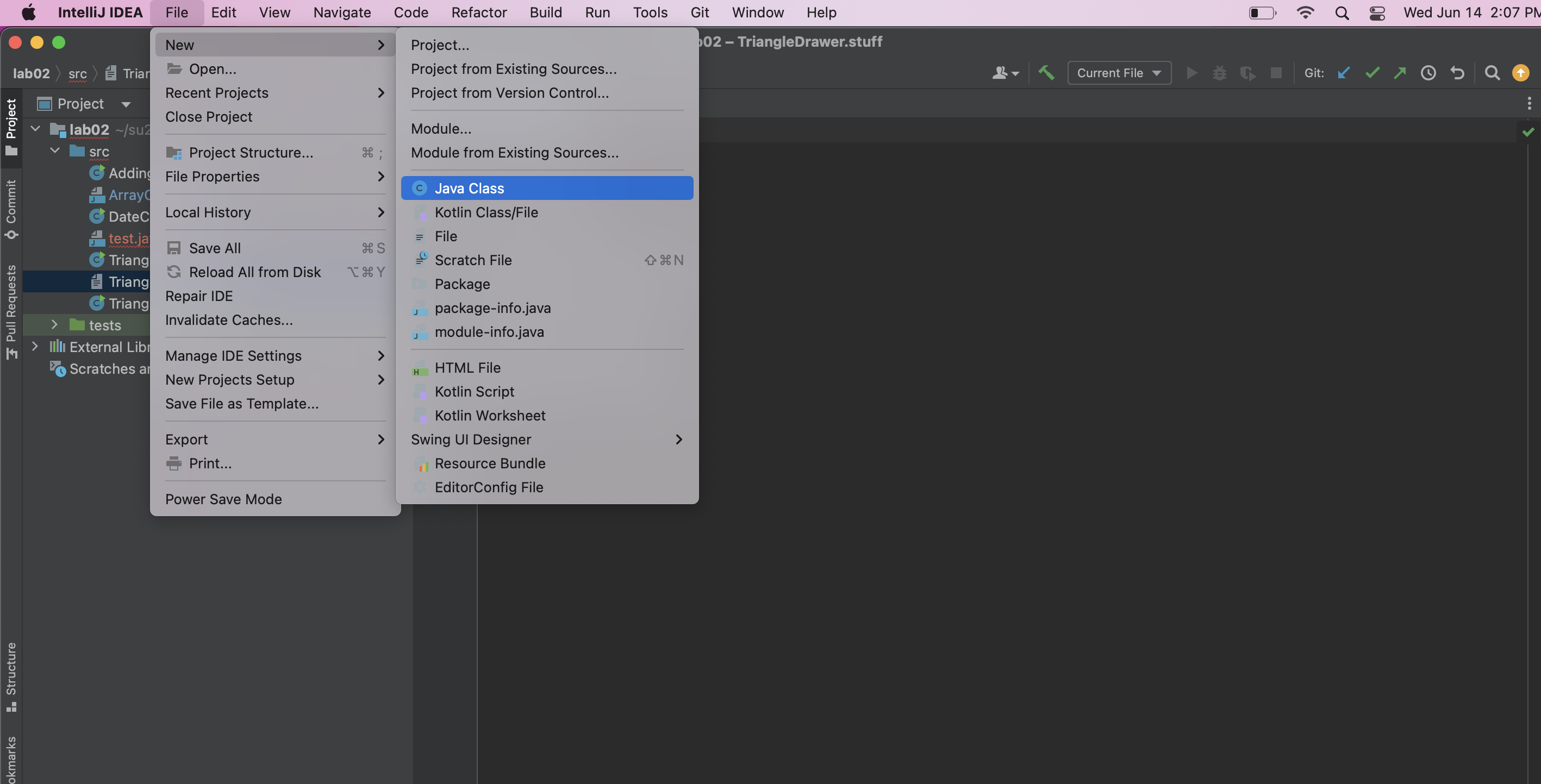

At the top of IntelliJ, you should see “File”. Click on it, and then hover over “New” and then click on “Java Class”. See this reference screenshot: New Java Class

You will then be prompted to give a name, which in this case you should write TriangleDrawer.java. Now, you’ve learned how to create a new Java class, and are ready to continue on to the next part of the lab!

Next, let us add a drawTriangle method to the class, as such:

public static void drawTriangle() {
    // your code here
}

Let’s add a main method to the class:

public static void main(String[] args) {
    // your code here
}

Inside the main method, let’s add a line to call the drawTriangle method:

public static void main(String[] args) {
    drawTriangle();
}

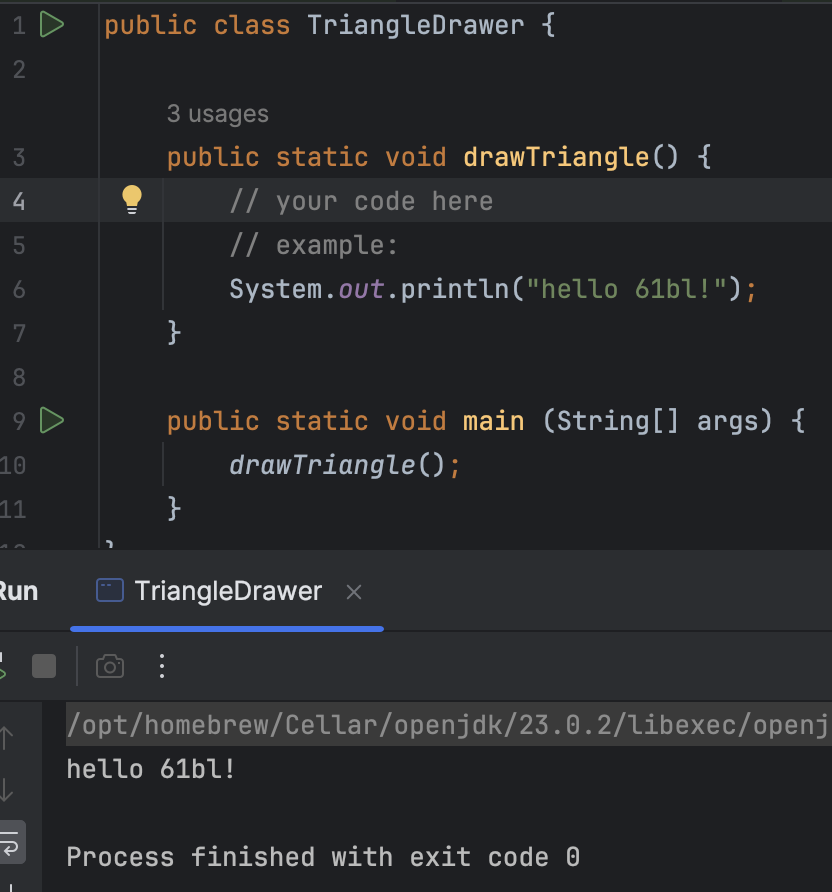

Now, you should be able to see a green arrow pop up on the public static void main line. Clicking this green arrow will allow you to run the main method, which in turn calls the drawTriangle method. In the below example, the drawTriangle prints out "hello cs61bl!, which we can see is outputted in the console when we run main. \n New Java Class

You can visually check the output of your drawTriangle method by running main like above. Tests are also provided in the tests/ folder; you can run TriangleDrawerTest.java in Intellij to check the correctness of your code. For this particular question, the given tests aren’t as useful (since it asks you to visually check your code output), but the test files will be much more relevant in future labs and other assignments.

Copy and paste statements from the TriangleDrawer.stuff file into the main method of TriangleDrawer.java. You’ll have to add some right braces in addition to the copied lines that you’ve chosen and rearranged. (You won’t need all the statements. You shouldn’t need to use any statement more than once.)

Many students encounter infinite loops in their first solutions to this problem. If you get an infinite loop, be sure to hit CTRL+C in your terminal to halt execution.

Hint: So far, we have mostly used the well-named function System.out.println to conduct our printing. However, this function always outputs a new line at the end of its provided string. There is a variant of this function, System.out.print, which does not output a new line. You may find it helpful in this exercise!

Task: Another Jigsaw Puzzle

Make a new Java file called TriangleDrawer2.java (you might want to copy and paste from TriangleDrawer.java). In this file, rewrite the program so that it produces the exact same output, but using for loops and no while loops. If you have having trouble, re-read the parts above describing how to convert a while loop to a for loop.

Hint: When do we define variables?

When working with loops, we have to consider scope. In other words, we have to consider when our variables are being created, when they are being modified, and when they are inaccessible. Which variables do we want to define within the loop (either in the header or the body) and which variables do we want to define outside of the loop (either before or after the loop)?

For example, consider the SIZE variable. When is it being modified? Based on that, where should it be defined?

Task: Array Exercises

Your task is to complete the two exercises in ArrayExercises.java.

  • makeDice: This method returns a new array of integers [1, 2, 3, 4, 5, 6].
  • findMinMax: This method takes an int[] array and returns the the positive difference between the maximum element and minimum element of the given array. You may assume the input array is nonempty.

Task: Array Operations

Look at the files ArrayOperations.java and ArrayOperationsTest.java.

Fill in the blanks in the ArrayOperations class. Your methods should pass the associated tests in ArrayOperationsTest.

Note: Before trying to program an algorithm, you should usually try a small case by hand. For each of the exercises today, demo each algorithm by hand before writing any code.

insert & delete

  • The insert method takes three arguments: an int array, a position in the array, and an int to put into that position. All the subsequent elements in the array are moved over by one position to make room for the new element. The last value in the array is lost.

For example, let values be the array {1, 2, 3, 4, 5}. Calling

insert(values, 2, 7)

would result in values becoming {1, 2, 7, 3, 4}.

  • The delete method takes two arguments: an int array and a position in the array. The subsequent elements are moved down one position, and the value 0 is assigned to the last array element.

For example, let values be the array {1, 2, 3, 4, 5}. Calling

delete(values, 2)

would result in values becoming {1, 2, 4, 5, 0}.

For today don’t worry about the methods being called with incorrect input.

catenate

Complete the Java function catenate so that it performs as indicated below and in the comments. Remember that some arrays can have zero elements!

Note: Again, before trying to program an algorithm, you should usually try a small case by hand.

You may find System.arraycopy useful for this problem, but you are not required to use it. If you are not sure how to use this method, try Googling it!

  • The catenate method takes in two arguments: integer arrays A and B. You should return a new array with all of the elements of A directly followed by all of the elements in B.

For example, let A be the array {1, 2, 3} and B be the array {4, 5}. Calling

int[] values = catenate(A, B);

would result in values becoming {1, 2, 3, 4, 5}.

Again, for today, don’t worry about the method being called with incorrect input. When you finish this function, all tests in ArrayOperationsTest.java should compile and pass.

Deliverables

As a reminder, this assignment has an FAQ page. These are the required files, all inside the lab01 directory:

TriangleDrawer.java
You should have created this class and implemented it such that TriangleDrawerTest.java passes.
TriangleDrawer2.java
This should function the same as TriangleDrawer.java, except using only for loops.
AddingMachine.java
Implement AddingMachine.java such that AddingMachineTest.java passes.
ArrayExercises.java
Implement ArrayExercises.java such that ArrayExercisesTest.java passes.
ArrayOperations.java
Implement ArrayOperations.java such that ArrayOperationsTest.java passes.

Don’t forget to submit your work to Gradescope!

After completing this lab, you now have the tools to go ahead and work on Project 0! Please take a moment to read the Project 0 Spec and start on the project if you have already - this is a fast-paced course and we want you to stay on track!
