FAQ

Each assignment will have an FAQ linked at the top. You can also access it by adding “/faq” to the end of the URL. The FAQ for Lab 5 is located here.

Before You Begin

Reference the Git WTF guide and lecture one for any git confusions!

Learning Goals for Today

This lab introduces you to the linked list, a data structure you may remember from CS 61A. Much like an array, a linked list stores sequential data. However linked lists use nodes; each node stores one item and a reference to the next node. The last node in a linked list has no next node, so it stores a null reference instead.

It is possible to implement linked lists that store any type of data by using generics, which you will be learning about in detail in a later lab. For now, this lab will focus on a Linked List that stores only integers - an IntList, for which we have provided a template. In this lab you will implement some basic functional methods for this data structure; in the next lab you will implement some more finicky destructive and non-destructive methods (you’ll get an introduction to these terms later today).

Along the way, we’ll also talk about testing and debugging software engineering principles.

Introduction to Linked Lists

In the next two labs we’re going to be working with the linked list. A linked list is similar to an array in that it also stores sequential data, but different operations have different runtimes between linked lists and arrays. Since different problems call for different efficient operations, choosing the right data structure is an important design choice for an engineer, and we’ll study this as we go through the course.

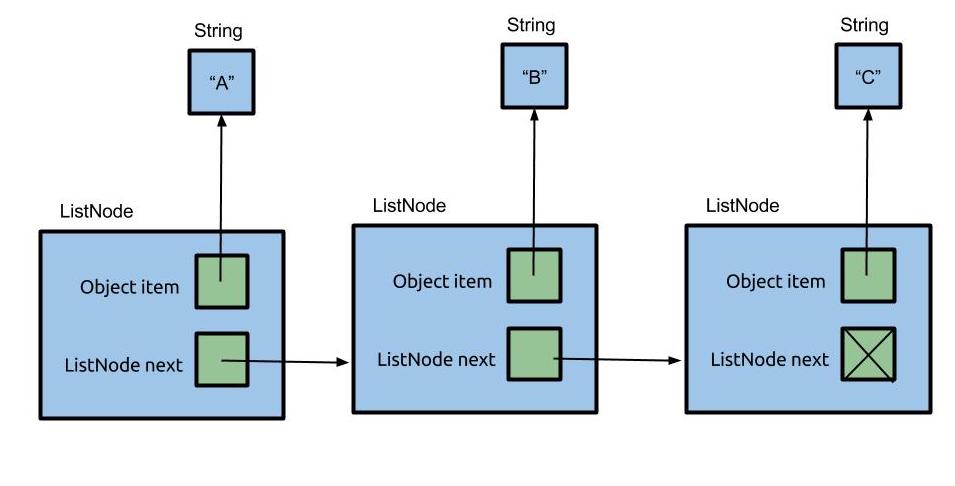

Here’s a picture of a simple implementation of a linked list that contains the items “A”, “B”, and “C” (can you draw the corresponding picture for an array that stores these items?). A linked list consists of nodes that are chained together. Here we represent nodes with a generic class ListNode. Each node contains some item called item. As you can see, the items form a sequence. In this example, the linked list items are Strings, though our linked list will contain ints instead, just like an int[].

IntList

A Straightforward Implementation of a Linked List

Here’s an implementation of an IntList which could easily be generalized to store different types of data. Notice how it stores an item item and a reference to another node next.

public class IntList {
    public int item;
    public IntList next;
}

IntList Box and Pointer Diagram

Draw out the box and pointer diagram that would result after the following code has been executed. You can visualize your code by clicking the “Visualize Code” below.

public class IntList {
    public int item;
    public IntList next;

    public static void main(String[] args) {
        IntList L = new IntList();
        L.item = 5;
        L.next = null;

        L.next = new IntList();
        L.next.item = 10;
        IntList p1 = L.next;

        L.next.next = new IntList();
        L.next.next.item = 15;
        IntList p2 = p1.next;
        p1.next = null;
    }
}

Visualize Code

If it’s hard to see what’s going on in the Java Visualizer, enable the following two options from the code editor.

• Prefer non-nesting and vertical layouts
• Force linked lists to display vertically

IntList Tests

For this lab, we’ve written tests for you in IntListTest.java using the Google’s Truth assertions library. Open it up and read through it. The first thing you’ll notice are the imports at the top. These imports are what give you easy access to the methods from the Truth library and and functionality that you’ll need to run those tests. If you want to read more about Google’s Truth library, refer to Lab 4.

Exercise: The get Method

Fill in the get method in the IntList class. get takes an int position as an argument, and returns the list element at the given (zero-indexed) position in the list.

For example, lets say you have an Intlist with items 44, 79, and 109. If get(1) is called, you should return 79. If the position is out of range, get should throw IllegalArgumentException with an appropriate error message (just type in throw new IllegalArgumentException("YOUR MESSAGE HERE")). Assume get is always called on the first node in the list.

public class IntList {
    public int get(int position) {
        ....
    }
}

Once you have something, test your code by running IntListTest.java. If your implementation is correct, you should pass the get method tests.

Tip: Traverse the list until the specified position is reached. Throw an exception if the position is out of bounds.

Task: Implement the get method.

Exercise: toString and equals

In Lab 3, we introduced you to the toString and equals methods and you worked with a Point class for your Pursuit Curves that implemented these methods.

Implement the standard Java methods, toString and equals, in the IntList class.

Once you’re done, test your code using the provided tests in IntListTest.java.

toString

The toString method for IntList returns the String representation of this list, namely:

1. The String representation of the first element, followed by a space,
2. The String representation of the second element, followed by a space,
3. …
4. The String representation of the last element.

The list containing the integers 1, 3, and 5 is represented by the string 1 3 5.

Hint: How would you convert an integer to a string in Java?

Try searching for the answer online! Talk to your peers! Consider referencing the official Java Documentation!

equals

Given an Object as argument, this method returns true if this list and the argument list are the same length and store equal items in corresponding positions (determined by using the elements’ equals method).

Tip: we recommend reading about how to use the instanceof keyword! As an extra note, to use instanceof without the extra casting step, you can use objectOne instanceof <ClassName> objectTwo, which will return true if objectOne can be an instanceOf the specific object, and false otherwise. Additionally, if it returns true, it will also assign objectTwo to be a version of objectOne that is casted as a <ClassName>.

Task: Implement toString and equals.

Exercise: add

Fill in the add method, which accepts an int as an argument and appends an IntList with that argument at the end of the list. For a list 1 2 3 4 5, calling add with 8 would result in the same list modified to 1 2 3 4 5 8.

public void add(int value) {
    // TODO
}

Task: Implement the add method.

Exercise: smallest

Implement the smallest method, which returns the smallest int that is stored in the list. For a list 6 4 3 2 3 2 2 5 999, a call to smallest would return 2. Feel free to use methods from the Math class.

public int smallest() {
    // TODO
}

Hint: How do we ask specific questions about integers in Java?

You might find the Math Class documentation helpful.

Task: Implement the smallest method.

Exercise: squaredSum

Finally, implement the squaredSum method. As the name suggests, this method returns the sum of the squares of all elements in the list. For a list 1 2 3, squaredSum should return 1^2 + 2^2 + 3^2 = 1 + 4 + 9 = 14.

public int squaredSum() {
    // TODO
}

This type of function is called a reducer, as it reduces the whole list down to a single value! You might remember this idea from CS61A.

Task: Implement the squaredSum method.

Destructive vs. Non-Destructive

Suppose you have an IntList representing the list of integers 1 2 3 4. You want to find the list that results from squaring every integer in your list, 1 4 9 16.

There are two ways we could go about solving this problem. The first way is to traverse your existing initial IntList and actually change the items stored in your nodes. Such a method is called destructive because it can change (mutate or destroy) the original list.

IntList myList = IntList.of(1, 2, 3, 4);
IntList squaredList = IntList.dSquareList(myList);
System.out.println(myList);
System.out.println(squaredList);

Running the above, destructive program would print,

1 4 9 16
1 4 9 16

Observe that the IntList.of() method makes it much easier to create IntLists compared to the brute force approach. This might be useful for writing your own tests…

IntList myList = new IntList(0, null);
myList.next = new IntList(1, null);
myList.next.next = new IntList(2, null);
myList.next.next.next = new IntList(3, null);
// One line of using IntList.of() can do the job of four lines!

The second way is called non-destructive, because it allows you to access both the original and returned lists after execution. This method returns a list containing enough new IntList nodes such that the original list is left unchanged.

IntList myList = IntList.of(1, 2, 3, 4);
IntList squaredList = IntList.squareList(myList);
System.out.println(myList);
System.out.println(squaredList);

Running the above, non-destructive program would print,

1 2 3 4
1 4 9 16

In practice, one approach may be preferred over the other depending on the problem you are trying to solve and the specifications of the program. We will talk about such trade-offs throughout the rest of the semester!

dSquareList Implementation

Here is one possible implementation of dSquareList, along with a call to dSquareList.

public static void dSquareList(IntList L) {
    while (L != null) {
        L.item = L.item * L.item;
        L = L.next;
    }
}

IntList originalList = IntList.of(1, 2, 3)
dSquareList(originalList);
// originalList is now (1, 4, 9)

The reason that dSquareList is destructive is because we change the values of the original input IntList L. As we go along, we square each value, and the action of changing the internal data persists.

It is also important to observe that the bits in the originialList box do not change. Objects are saved by reference, meaning the value tied to the variable will point to a memory address rather than the integer values in our list. Thus, though this method is destructive, it is changing the value saved in the memory location referred to by originalList, not the value within originalLlist itself. For more about this, refer to Lab 3.

Testing dSquareList

The dSquareList implementation above is provided to you in your skeleton file as well.

Use the Java Visualizer plugin to visualize the IntList and to understand how the dSquareList method works. Pointers and IntLists might seem confusing at first, but it’s important that you understand these concepts!

Note: The choice to return void rather than a pointer to L was an arbitrary decision. Different languages and libraries use different conventions. We have the flexibility to decide when writing destructive methods when mutating objects passed in as arguments.

Non-Destructive Squaring

squareListIterative() and squareListRecursive() are both non-destructive. That is, the underlying IntList passed into the methods does not get modified, and instead a new copy is modified and returned.

public static IntList squareListIterative(IntList L) {
    if (L == null) {
        return null;
    }
    IntList res = new IntList(L.item * L.item, null);
    IntList ptr = res;
    L = L.next;
    while (L != null) {
        ptr.next = new IntList(L.item * L.item, null);
        L = L.next;
        ptr = ptr.next;
    }
    return res;
}

public static IntList squareListRecursive(IntList L) {
    if (L == null) {
        return null;
    }
    return new IntList(L.item * L.item, squareListRecursive(L.next));
}

Ideally, you should spend some time trying to really understand them, including possibly using the visualizer. However, if you don’t have time, note that the iterative version is much messier.

The iterative versions of non-destructive IntList methods are often (but not always) quite a bit messier than the recursive versions, since it takes some careful pointer action to create a new IntList, build it up, and return it.

	Destructive	Non-destructive
What?	Modify the original list	Return a new list
Examples:	dSquareList	squareListRecursive, squareListIterative

Exercise: Concatenation

To complete the lab, you will need to add test for catenate and dcatenate, and then implement catenate and dcatenate as described below.

You may find the squaring methods from above to be useful as you write your code.

You may also find Lab 4’s section on Test Driven Development useful as you write your tests.

@Test
public void testCatenate() {
    // TODO: Add tests
}

public static IntList catenate(IntList A, IntList B) {
    // TODO
}

@Test
public void testDCatenate() {
    // TODO: Add tests
}

public static IntList dcatenate(IntList A, IntList B) {
    // TODO
}

Both methods take in two IntLists and concatenate them together, so catenate(IntList A, IntList B) and dcatenate(IntList A, IntList B) both result in an IntList which contains the elements of A followed by the elements of B. The only difference between these two methods is that dcatenate modifies the original IntList A (it’s destructive) and catenate does not.

As an example, if you call either of the methods with two IntLists containing [0, 1, 2] and [3, 4], both catenate and dcatenate will result in an IntList containing [0, 1, 2, 3, 4].

To complete the lab:

• Write tests for catenate and dcatenate
• Fill in one of dcatenate() or catenate(), and run them against your tests. Revise your code until it passes your tests.
• Repeat for the method you haven’t yet completed. (We recommend you do one first and finish it before you start the next, because then you’ll be able to take advantage of the similar logic).

Tip: IntList problems can be tricky to think about, and there are always several approaches which can work. Don’t be afraid to pull out pen and paper or go to the whiteboard and work out some examples! If you get stuck, drawing out the pointers can probably steer you back onto the path of progress. And, as always, the debugger is a great option!

Feel free to use either recursion or iteration. For extra practice, try both!

Tip: It’s also often useful to first think about base cases, such as when A is null, for example. This works especially well for building up a recursive solution. In other words, write up a solution that would work for the base case, then stop and think about how to expand this solution into something that works for other bigger cases.

For this problem, it is okay for dcatenate to return one or the other list if one or both of A and B are null. For catenate, it is okay to attach B to the end of A without making a full copy of B.

However, think about the following two questions:

• Why does this still produce a ‘correct’ program?
• What kinds of problems could this decision cause?

Task: Implement the catenate and dcatenate methods.

Recap

Today we talked about the IntList. Methods involving Linked Lists can be implemented iteratively and recursively. These functions can also be destructive or non-destructive.

Deliverables

• IntList.java
  • get
  • toString
  • equals
  • add
  • smallest
  • squaredSum
  • catenate
  • dcatenate

After today’s lab, you’re now equipped with the knowledge to start Project 1A!
