Introduction
Pull the skeleton, as usual.
Copy your implementation of the following methods of
Graph.java
file from Lab 17 intosrc/Graph.java
:
addEdge
addUndirectedEdge
isAdjacent
neighbors
inDegree
More Graph Algorithms
In Lab 17, we introduced graphs and their representations, and then we moved to basic graph iteration. A variety of algorithms for processing graphs are based on this kind of iteration, and we’ve already seen the following algorithms:
- Determining if a path exists between two different vertices
- Finding a path between two different vertices
- Topological sorting
None of these algorithms depended on the fringe representation. Either depth-first traversal (using a stack) or breadth-first traversal (using a queue) would have worked.
We’re now going to investigate an algorithm where the ordering of the fringe does matter. But first…
Storing Extra Information
Recall the exercise from Lab 17 where you determined the path from a start
vertex to a stop
vertex. A solution to this exercise involved building a
traversal, and then filtering the vertices that were not on the path.
Instead of searching for the previous vertex along the path in all of the visited nodes like we did last lab, we can create predecessor links. If each fringe element contains a vertex and its predecessor along the traversed path, we can make the construction of the path more efficient. This is an example where it is useful to store extra information in the fringe along with a vertex.
Associating Distances with Edges
In graph applications we’ve dealt with so far, edges were used only to connect vertices. A given pair of vertices were either connected by an edge or they were not. Other applications, however, process edges with weights, which are numeric values associated with each edge. Remember that in an application, an edge just represents some kind of relationship between two vertices, so the weight of the edge could represent something like the strength, weakness, or cost of that relationship.
In today’s exercises, the weight associated with an edge will represent the distance between the vertices connected by the edge. In other algorithms, a weight might represent the cost of traversing an edge or the time needed to process the edge.
A (directed) graph with weighted edges is shown below.
- Observe the weights on the edges (the small numbers in the diagram). Note that in a directed graph, the weight of an edge
(v, w)
doesn’t have to be equal to the weight of the edge(w, v)
, its reverse.
Make sure you understand the idea of predecessor links and edge weights described above!
Shortest Paths
A common problem involving a graph with weighted edges is to find the shortest path between two vertices. This means to find the sequence of edges from one vertex to the other such that the sum of weights along the path is smallest. Note that though Breadth First Search might be able to find a path with the least number of edges, it’s not capable of finding a shortest path based off the total edge weight if edge weights are different.
This is a core problem found in real life mapping applications. Say you want directions from one location to another. Your mapping software will try to find the shortest path from your location (a vertex), to another location (another vertex). Different paths in the graph may have different lengths and different amounts of traffic, which could be the weights of the paths. You would want your software to find the shortest, or fastest, path for you.
Discussion: Shortest Path
For the (directed) graph pictured above, what is the shortest path that connects vertex 0 with vertex 2?
Click to reveal answer!
0 4 1 2For the graph pictured above, what is the shortest path that connects vertex 2 with vertex 1?
Click to reveal answer!
2 3 0 4 1For the graph pictured above, what is the shortest path that connects vertex 1 with vertex 0?
Click to reveal answer!
1 4 3 0Dijkstra’s Algorithm
How did you do on the shortest path questions above? It’s pretty tricky, right?
Luckily, there is an algorithm devised by Edsger Dijkstra (usually referred to
as Dijkstra’s Algorithm), which can find the shortest paths on a graph with non-negative edge weights. Dijkstra’s Algorithm finds the shortest path for not just for a pair of vertices \((0, 2)\), but all the shortest paths from a
start vertex s
to every other vertex reachable from s
. The algorithm is
somewhat tedious for humans to do by hand, but it isn’t too inefficient for
computers.
Dijkstra’s Algorithm finds the shortest paths from a given starting vertex to all other nodes in a graph with non-negative edge weights, also known as a shortest paths tree. To just find the shortest path between two specified vertices
s
andt
, simply terminate the algorithm aftert
has been visited. Below is an overview of Dijkstra’s Algorithm.
We will use a priority queue for our fringe. Here, we’re using a min priority queue, because we want to prioritize visiting nodes with smaller total distance from the start point.
Initialization:
- Maintain a mapping from vertices to their distance from the start vertex. This will be used by the fringe to determine the next vertex to visit. We will use a priority queue to implement this fringe. Here, an item’s priority value is its distance from the start vertex.
- Add the given start vertex to the fringe with distance / priority value zero.
- All other nodes can be left out of the fringe. If a node is not in the fringe, assume it has distance infinity (aka we haven’t analyzed any paths to that node yet).
- For each vertex, keep track of which other node is the predecessor for the
node along the shortest path found. For example, for the path
b
->r
->u
,b
is the predecessor ofr
, andr
is the precessor ofu
.
While Loop: Loop until the fringe is empty.
- Let
v
be the vertex in the fringe with the shortest distance to the start (or the highest priority). Remove and hold ontov
.- Dijkstra’s visits vertices that are closest to the start first, thanks to our priority queue. Thus, if we have just popped
v
off the queue, it must have been the next closest vertex from the start. This means that there is no possible shorter path to get tov
through any vertices still on the queue, because they’re all farther from the start thanv
! So, whenever we visit a vertex, we know we’ve found the shortest possible path to that vertex. You can find more in depth proofs of this online.
- Dijkstra’s visits vertices that are closest to the start first, thanks to our priority queue. Thus, if we have just popped
-
If
v
is the destination vertex, terminate now (this is optional and depends on whether you want to find a path to one goal, or find a path to all vertices). Otherwise, mark it as visited. Any visited vertices should not be visited again. -
Then, for each neighbor
w
ofv
, do the following:-
As an optimization, if
w
has been visited already, skip it (Dijkstra’s Algorithm visits vertices in distance-order from the root, so if we are revisiting a node, we have already found a shorter path that gets us there). -
If
w
is not in the fringe (or another way to think of it - it’s distance is infinity or undefined in our distance mapping), add it to the fringe (with the appropriate distance and previous pointers). -
Otherwise, if the path through
v
tow
is a shorter path than what we’ve seen so far, we need to updatew
’s distance. If that is the case, replace the distance forw
’s fringe entry with the distance fromstart
tov
plus the weight of the edge(v, w)
, and replace its predecessor withv
.- If you are using a
java.util.PriorityQueue
, you will need to calladd
oroffer
again so that the priority updates correctly. Do not callremove
as this takes linear time.
- If you are using a
-
Every time a vertex is dequeued from the fringe, that vertex’s shortest path has been found and it is finalized. The algorithm ends when the stop vertex is returned by
next
. Follow the predecessors to reconstruct the path.

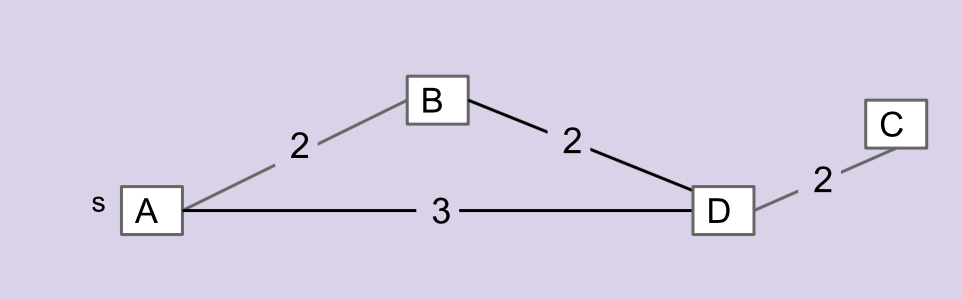

We can’t guarantee the correctness of Dijkstra’s algorithm on graphs with negative edge weights! Consider why this is the case. In CS 170, you’ll learn about the Bellman-Ford algorithm, which solves the same single-source shortest paths problem for graphs with negative edge weights too.
Dijkstra’s Algorithm Animation
Dijkstra’s algorithm is pretty complicated to explain in text, so it might help you to see an animation of it.
Also, here is a demo from a previous semester’s lecture slides.
As you watch the video, think about the following questions:
- How can you tell what vertices were currently in the fringe for a given step?
- After the algorithm has been run through, how can you look at the chart and figure out what the shortest path from \(A\) to \(H\) is?
Note that in this video, the fringe is initialized by putting all the vertices into it at the beginning with their distance set to infinity. While this is also a valid way to run Dijkstra’s algorithm for finding shortest paths (and one of the original ways it was defined), this is inefficient for large graphs. Semantically, it is the same to think of any vertex not in the fringe as having infinite distance, as a path to it has not yet been found.
Runtime
Implemented properly using a priority queue backed by a binary heap, Dijkstra’s algorithm should run in \(O((|V| + |E|) log |V|)\) time, where \(|V|\) represents the number of vertices, and \(|E|\) represents the number of edges. This is because for our heap, we make at most \(|V|\) inserts/removals and \(|E|\) updates requiring heap operations, which take \(log|V|\) time (as discussed in Lab 15).
For connected graphs, the runtime can be simplified to O(|E| log |V|)
, as the
number of edges must be at least |V| - 1
. Using alternative implementations of
the priority queue can lead to increased or decreased runtimes.
Exercise: Dijkstra’s Algorithm

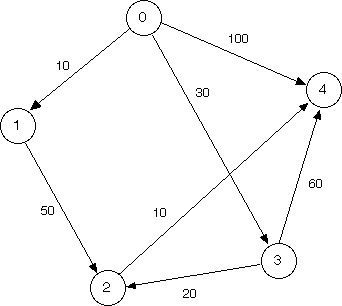

For practice, run Dijkstra’s algorithm by hand on the pictured graph below, finding the shortest path from vertex 0 to vertex 4. Keep track of what the fringe contains at every step.
We recommend keeping track of a table like in the animation. Also, make sure you know what the fringe contains at each step!
Click to reveal answer:
Each of the entries is listed as “dist
(from
)”. For example, if there was a listing for vertex 2 that was “3 (4)”, it means that, for this iteration,
the distance to vertex 2 is 3, and vertex 4 is its predecessor along the path. Asterisks
denote vertices which have been removed from the fringe and should no longer be
considered.
Iteration | 0 | 1 | 2 | 3 | 4 |
---|---|---|---|---|---|
0 | 0 (0) | (-) | (-) | (-) | (-) |
1 | 0 (0)* | 10 (0) | (-) | 30 (0) | 100 (0) |
2 | 0 (0)* | 10 (0)* | 60 (1) | 30 (0) | 100 (0) |
3 | 0 (0)* | 10 (0)* | 50 (3) | 30 (0)* | 90 (3) |
4 | 0 (0)* | 10 (0)* | 50 (3)* | 30 (0)* | 60 (2) |
5 | 0 (0)* | 10 (0)* | 50 (3)* | 30 (0)* | 60 (2)* |
Exercise: shortestPath
Add Dijkstra’s algorithm to Graph.java
from yesterday. Here’s the method
header:
public List<Integer> shortestPath(int start, int stop) {
// TODO: YOUR CODE HERE
return null;
}
For this method, you will need to refer to each Edge
object’s weight
field.
Additionally, it may be useful to write a getEdge
method, that will return the
Edge
object corresponding to the input variables. Here’s the header:
private Edge getEdge(int v1, int v2) {
// TODO: YOUR CODE HERE
return null;
}
Additionally, adding the vertices to our PriorityQueue
fringe directly won’t
be enough. Our vertices are integers, so the PriorityQueue
will order them by
their natural ordering. Write a comparator to change the ordering of the vertices. You may find this constructor of Java’s PriorityQueue
helpful.
Hint:
At a certain point in Dijkstra’s algorithm, you have to change the value
of nodes in the fringe. Java’s PriorityQueue
does not support this operation directly, but we can add a new entry into the PriorityQueue
that contains the updated value (and will always be dequeued before any previous entries). Then,
by tracking which nodes have been visited already, you can simply ignore any
copies after the first copy dequeued.
Implement the
shortestPath
method inGraph.java
, and write a comparator for the vertices. We also recommend implementing thegetEdge
helper method, though it is not required. All tests have been provided locally (yayyy) to help you debug!
Tie-breaking scheme: if there are multiple possible shortest paths to a vertex (i.e. different paths with same total weight), tiebreak by choosing the path that was traversed first. In other words, when considering if we want to update a vertex’s predecessor, we should only update it if the new distance is strictly less than the old distance.
two vertices are the same distance away from the source, you may tiebreak arbitrarily.
A* search
Sometimes, we know more about a graph than just the edge weights. If we’re looking for the shortest path from s
to t
(aka we have a particular destination in mind), we might have an estimate of how far any other vertex is to t
. We’ll see how to solve this problem using an algorithm called A* (“A star”), which is like Dijkstra’s with an additional factor.
As an example, imagine you’re in Davis, and you want to know the shortest path to New York. Let’s say that in our graph, the two nearest vertices to Davis are San Francisco (west of Davis) and Lake Tahoe (east of Davis). San Francisco is a little closer to your starting point (Davis), but you can estimate that Lake Tahoe is ultimately closer to the goal (New York). If we were using Dijkstra’s, we’d visit San Francisco first, since Dijkstra’s only considers how close something is to the start. With A* though, we can take into account our estimate, and go to Lake Tahoe first, which will bring us closer to New York!
This estimate is found by using a heuristic. In A*, our heuristic function is some way to calculate an approximate distance of any given vertex to a particular goal.
Notation: If \(h\) is our heuristic function with node \(x\) being the goal, \(h(a) =\) the heuristic value corresponding to node \(a\) when node \(x\) is the goal.
A* runs extremely similar to Dijkstra’s. The primary difference is that for a vertex v
, its priority value is the sum of the known distance from s
to v
and the estimated distance from v
to the goal t
. By doing so, each node is prioritized by what we believe (according to our heuristic) the total path will be if we go through that node. This makes sense when considering that the path lengths should add up: dist(s, v)
\(+\) dist(v, t)
\(=\) dist(s, t)
.
By looking at the priority queue this way, we are first looking at paths we think will have the lowest total distance (according to our heuristic), not just the lowest distance so far.
If our heuristic is completely misguided (a very bad heuristic), then our judgements will likely be wrong. In the earlier Davis -> New York example, consider if the heuristic for Lake Tahoe was 5000 (i.e. Lake Tahoe is estimated to be 5000 units away from New York), and the heuristic for San Francisco was 5 (i.e. San Francisco is estimated to be 5 units away from New York). These estimations for the Davis-SF and Davis-Tahoe distances are way off, which will throw off our calculations when performing A* from Davis to New York and cause us to output the wrong shortest path!
CS61BL doesn’t cover how good heuristics are calculated/chosen; take CS188 if you’d like to learn more about it!
Optional Applications
Graphs have very real applications! For example, some approaches to BYOW that we’ve seen in the past have used graph algorithms. We can also use graphs to solve other problems in computer science such as:
- Garbage Collection, the problem of managing memory in Java.
- Search engines utilize algorithms (most famously, Google’s PageRank) to sovle the problem of organizing information on the internet and making efficient queries on the data to return the best results.
Deliverables
- Complete the
shortestPath
method inGraph.java
.
